Continuous high-pressure solid-liquid separation mechanical dehydrator technology and process:
     （一）According to the different characteristics of the water-containing materials and the high pressure generated by pneumatic hydraulic technology, the water-containing materials are continuously closed and high-pressure solid-liquid separation to achieve the purpose of dehydration and weight reduction.

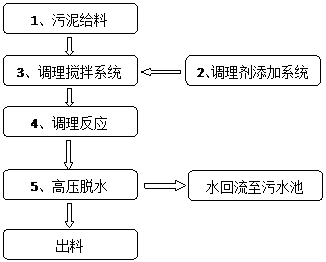

     （二）Process flow:

（三）Characteristics of continuous high-pressure solid-liquid separation mechanical dehydrator:
      1、Continuous high-pressure operation is the characteristic of dehydration of this equipment.
      2、Materials with a moisture content of about 85% can be directly fed into the equipment for dehydration.
      3、High processing efficiency: The system operates fully automatically without manual intervention, with automatic feeding and automatic discharging.
      4、Low processing cost:
    （1Inorganic materials with a moisture content of about 80% can be directly dehydrated to a moisture content of less than 50% without adding a conditioning agent (such as activated carbon adsorption materials, etc.).
    （2）For organic sludge or materials with a general viscosity of about 80% moisture content, 3-5% biomass conditioner needs to be added to dehydrate about 500kg per ton of materials with a moisture content of about 80%. Materials with good particle hydrophobicity do not need to add conditioning agents.
    （3）For highly viscous organic materials with a moisture content of about 80%, an appropriate amount of conditioning agent needs to be added to dehydrate them to a moisture content of 55-65%.
　　（四）Equipment technical parameters:
     1、The installed power of the main machine is 19 kw/h
     2、The power of auxiliary systems such as automatic feeding and discharging is about 7 kw/h.
     3、Working pressure: 6-12mpa, pressure: more than 20kg
     4、Processing capacity: about 80% moisture content of materials, about 1500kg/h.

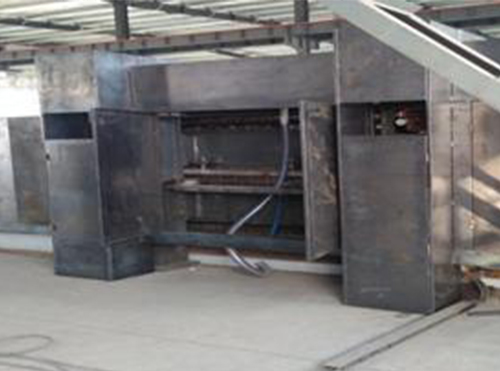

Continuous high-pressure solid-liquid separation mechanical dehydrator

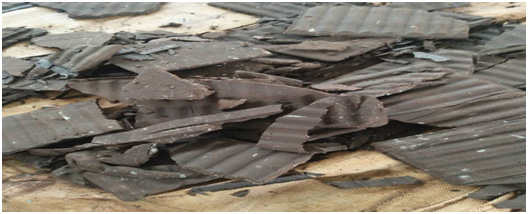

  The sludge with a moisture content of about 83% is dehydrated under high pressure to a moisture content of less than 60%:
