Equipment introduction:

Ultrafiltration is a membrane separation process that uses sieving as the separation principle and pressure as the driving force. The filtration precision is in the range of 0.005-0.01μm, which can effectively remove particles, colloids, bacteria, heat sources and high-molecular organic substances in water. It can be widely used in the separation, concentration and purification of substances. The ultrafiltration process has no phase transformation and operates at room temperature. It is particularly suitable for the separation of heat-sensitive substances. It has good temperature resistance, acid and alkali resistance and oxidation resistance. It can be used continuously for a long time under the conditions of below 60℃ and pH of 2-11. use.

Technical Parameters:

1、Operating temperature: 5～45℃;

2、pH range: 2~13;

3、Maximum membrane pressure difference: 0.2MPa;

4、Product water turbidity: <0.1NTU;

5、Inlet water turbidity: 15~50NTU (high anti-pollution type), <15NTU (conventional type)＜15NTU(常规型)

6、Microorganism and bacteria removal rate: 99.99%;

7、Suspended matter removal rate: 100%

Technical features:

Achieve efficient separation, purification and high-fold concentration of materials. There is no phase change during the treatment process and no adverse effects on the components of the materials. The separation, purification and concentration processes are always at room temperature. It is especially suitable for the treatment of heat-sensitive substances. It is completely It avoids the disadvantage of high temperature destroying biologically active substances and effectively retains biologically active substances and nutrients in the raw material system. The system has low energy consumption and a short production cycle. Compared with traditional process equipment, the equipment operating costs are low, which can effectively reduce production costs and improve corporate economic benefits. It occupies a small area and is easy to operate and maintain. It adopts sanitary pipe valves, makes the site clean and hygienic, and meets the requirements of GMP or FDA production specifications.

Application scope:

It is suitable for production processes aimed at separation, concentration, and purification, and is widely used in chemical, pharmaceutical, food, and environmentally friendly electronics industries.

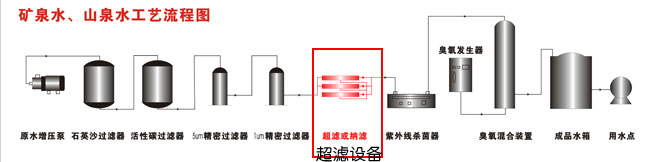

Flow chart:
